Joints

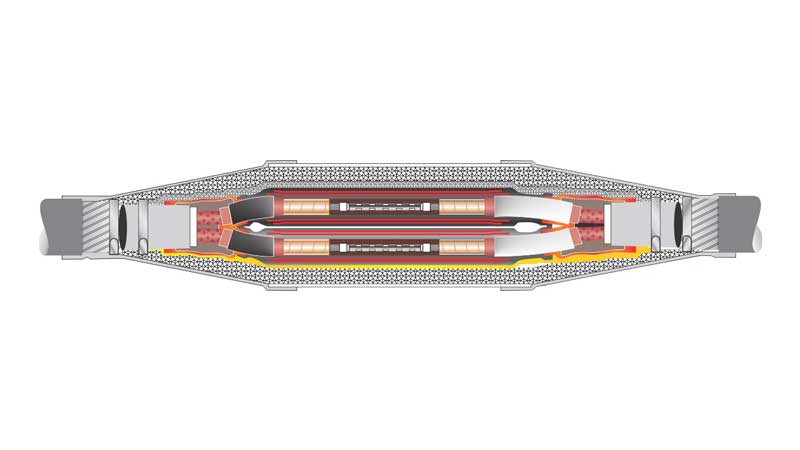

Heat Shrink Straight Joints upto 36 kV (For PILC Cable)

PSS-24-36

Heat Shrink Straight Joints upto 36 kV (For PILC Cable)

Enquire Now

Heat Shrink Straight Joints upto 36 kV (For PILC Cable)

In conformance with BS 6480, IEC 55 (Part I & II), VDE 0255, IS 692

Specifications

TEST	TYPE PSS - 24-36
A.C. Voltage withstand	75 kV / 1 min .
D.C. Voltage withstand	144 kV / 30 min.
Impulse Voltage withstand (10+VE & 10-VE Shoot)	170 kV

Ordering Information

CABLE SIZE (Sq. mm)	FOR 36 kV (Kit Code)
3 x 25 - 50	PSS - 21	Enquire Now
3 x 70 - 95	PSS - 22	Enquire Now
3 X 120 - 150	PSS - 23	Enquire Now
3 x 185 - 240	PSS - 24	Enquire Now
3 x 300 - 500	PSS - 25	Enquire Now

CABLE SIZE (Sq. mm)	FOR 22 kV (Kit Code)
3 x 35 - 70	PSS - 31	Enquire Now
3 x 95 - 150	PSS - 32	Enquire Now
3 x 185 - 300	PSS - 33	Enquire Now
3 x 400	PSS - 34	Enquire Now

Heat Shrink Joints
