Heat Shrinkable Straight Through Joints for 72.5 kV
XSSS-72 kV

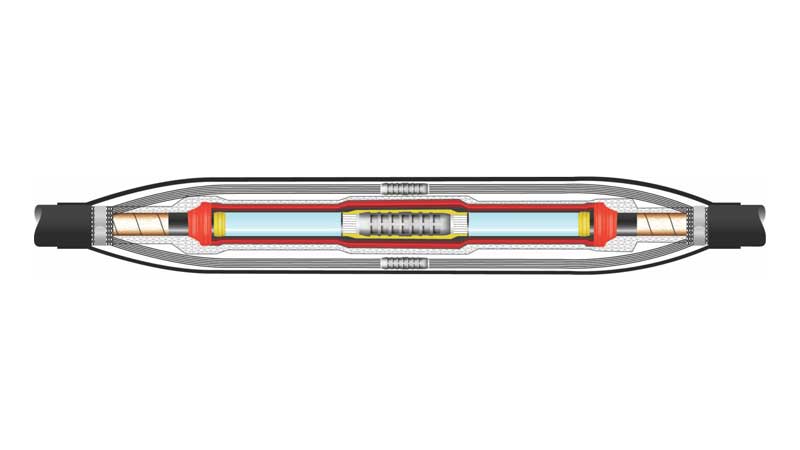

Densons Heat Shrinkable Straight Through Joints for 72.5 kV (For Single Core XLPE Cable)
Enquire Now
Features
- In house state-of-art compounding technology to provide maximum protection against tacking, corona discharge dielectric stress.
- Minimises jointer’s skills.
- The Products are carefully selected compositions of raw materials to meet the most stringent demands.
- We also offer tailor-made solutions against specific requirements.
- Continuous operation temperature-55°C to 120°C.
- Corrosion resistant and unlimited shelf life.
- High resistance to impact and abrasion.
- Electrolytic grade connectors.
Dimension Chart
In conformance with IEEE-48, VDE 0278 & IS: 13573, IEC 60840
| TEST |
Type XSSS 72 |
| A.C. Dry withstand Voltage |
114 kV / 4 Hrs. |
| Impulse voltage test |
325 kV / 10 Shots |
| DC High Voltage |
114 kV / 15 Min. |
Order Reference:
