Polymeric Goab Switch

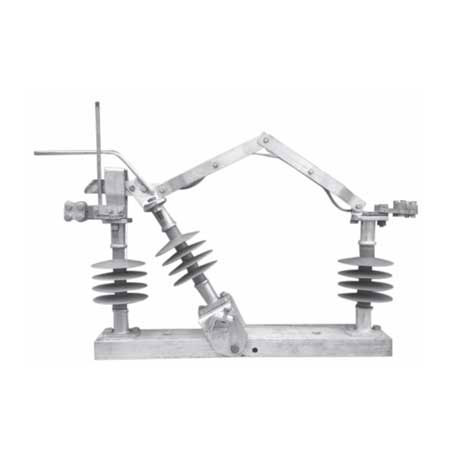

We are the manufacturers, suppliers and exporters of polymeric goab switches. These gang operated air break switches are used for outdoor applications and are ideal for harsh atmospheric conditions of humidity, low & high temperature.

Enquire Now

Application

The Polymer Air Break Switch is gang operated and outdoor Type. The main Application of this product is to isolate the Transformer, Overhead lines, System or Cables from distribution network.

Construction

Our Polymer Air Break Switch have Two Pole/Triple pole construction and suitable for Vertical / Horizontal mounting. Each pole consist of galvanised steel base, Polymeric Post insulators, Self aligning type contacts made of hard drawn electrolytic copper/heavily tinned .The various parts accordingly finished to ensure interchangeability of similar components. Flexible braided tape is of EC grade tin plated copper of appropriate size to complete the current path from moving contact to fix contact.

The AB Switch Accessories

S. No.	ITEM	QTY.
1)	Operating Rod (GI )	1 No.
2)	Phase coupling square rod (GI)	1 No.
3)	Operating handle (GI)	1 No.

Technical Parameters

SR. NO	PARAMETERS	11 kV	22 kV	33 kV
1	SYSTEM VOLTAGE	11kV(r.m.s)	22kV(r.m.s)	33kV(r.m.s)
2	HIGHEST SYSTEM VOLTAGE	12kV(r.m.s)	24kV(r.m.s)	36kV(r.m.s)
3	RATED CURRENT	200/400Amps.	200/400Amps.	200/400Amps.
4	POWER FREQ. WITH STAND VOLT TO EARTH	28 kV(r.m.s)	50 kV(r.m.s)	70kV(r.m.s)
	ACROSS THE TERMINALS	32kV(r.m.s)	60kV(r.m.s)	80kV(r.m.s)
5	IMPULSE WITHSTAND VOLTAGE TO EARTH	75 kVp	95kVp	170 kVp
	ACROSS THE TERMINALS	85kVp	110kVp	195kVp
6	RATED SHORT TIME CURRENT FOR 1 SEC.	16kA	16kA	16kA
